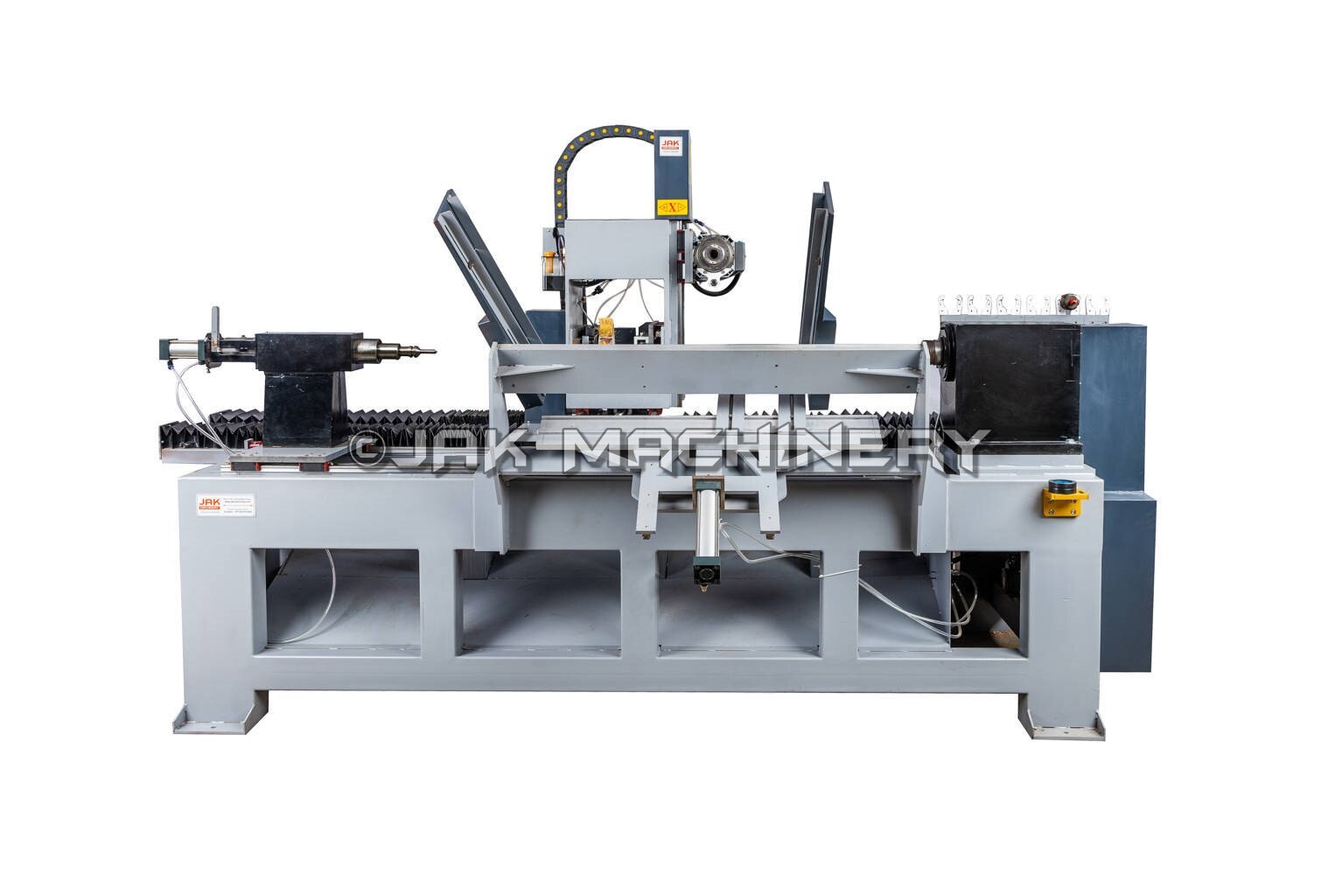

4 Axis CNC Wood Lathe (Model : 4X-TCSF-MTC) Multi-functional Wood Lath Machine having capability of Turning , Carving , Shaping and Finishing(TCSF) Almost all the operations like Wood Planning , Turning , Mortise, Slotting , Carving and Finishing can be done in single setup !
| Remote Operating Support : | Machine can be operated remotely using any remote software like Anydesk / Ultraviewer. This is very nice feature that helps for training and trouble shooting. |
| Auto Center : | Machine have fixture(Stand) to load the wood. Once you set the fixture, you do not need to center mark on each similar wood. Loading and unloading manually, but machine take center automatically. |
| Dome Light Indication : | Yellow Light indicates Main Power Supply is Applied. Green Light Indicates Machine Power is On. Red Light indicates Machine is at Emergency Stop mode. |
| Auto-function change : | Automatic function change customization enhances manufacturing flexibility by allowing machinery to automatically switch between different functions (Turning /Carving / Shaping / Sanding). This will enable user to use multiple operation without any interruption. |
| Auto Lubrication : | Automatic lubrication systems consist of a central reservoir supplying lubricant through distribution lines to directly slider blocks. |
| Auto Stop : | Machine will stop Automatically if any Servo motor and spindle motor overload its rated capacity. This feature will help you to avoided savior mechanical damage because of collision. |
| Auto Origin : | When you start the machine, machine set the X and Z Origin Automatically. If this facility is not there then you must set the origin manually which can never be accurate. |
| Auto Tool zero : | Machine have Sensor for accurate measurement of both turning and carving tool lengths. Software store tool length and update the Y origin automatically. Without Auto tool zero you have to update origin on each wood size. |
| Simultaneous 4 Axis : | Machine can accept 4 axis gcode to run all X, Y Z and A axis all together. This enable use to make carving operation on flat and circular surface. Some special type of pillar can do only with simultaneous 4 Axis capability. |
| Power Consumption : | 13KW ( 3 Phase ) |

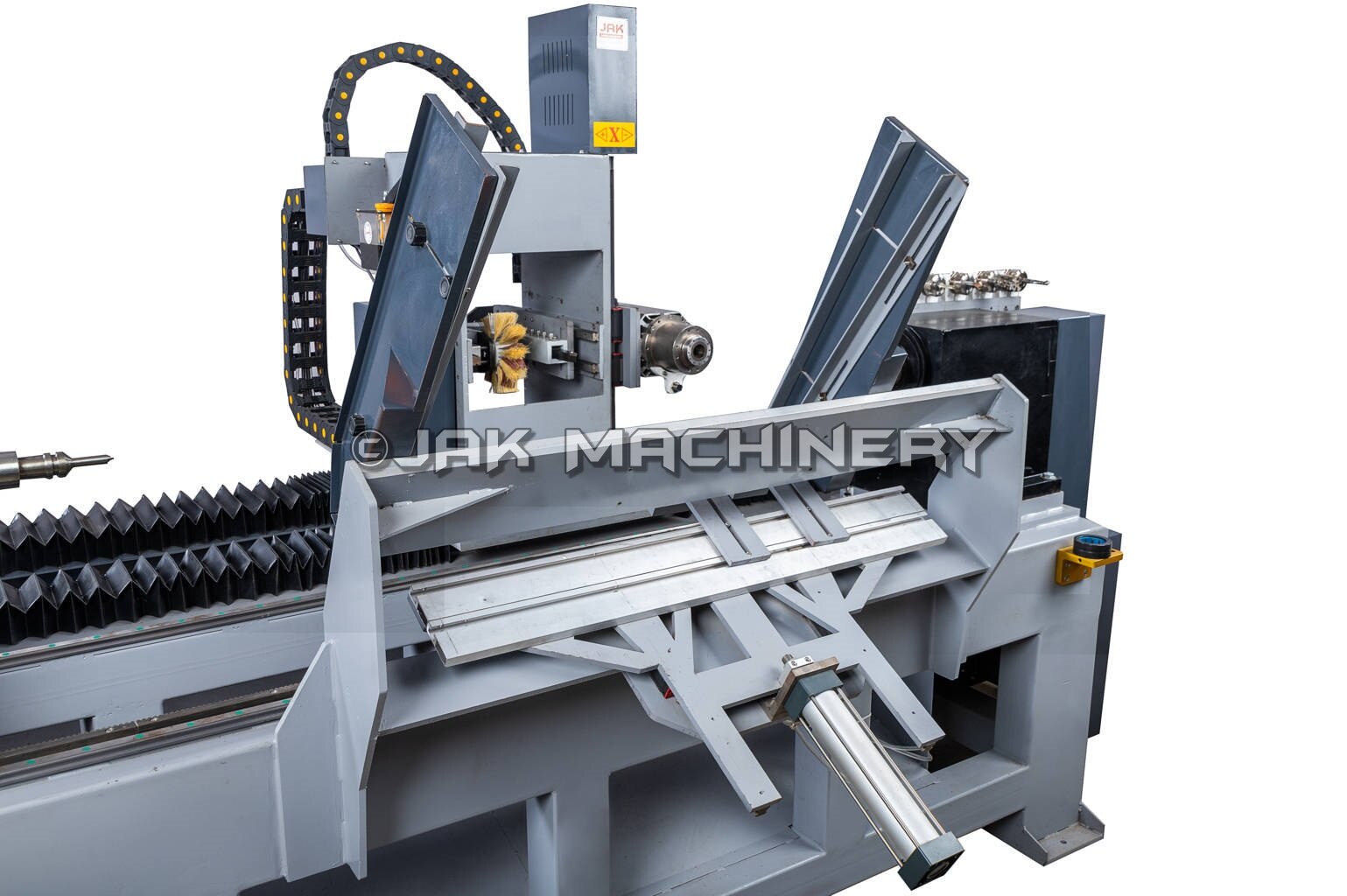

| Wood Feeding System : | Auto Feeding - Auto Center (Semi Automatic) |

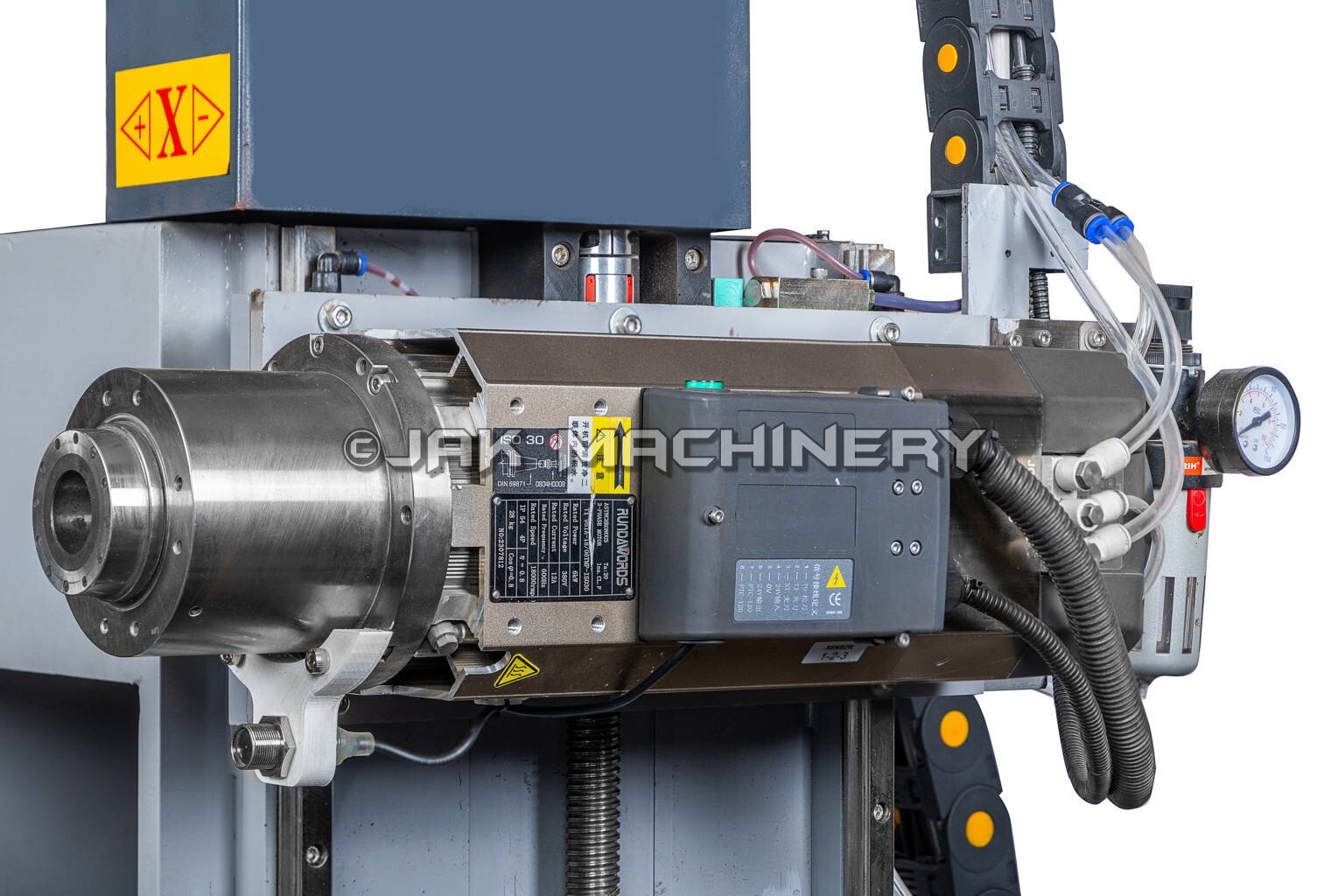

| Spindle Specification : | 3.5 kW / 4.5 kW / 6 kW Air Cooled, 18000 rpm, ER32 |
| Axis Motion Motor : | Servo Motor |
| Position Accuracy : | 0.05 mm (50 Micron) |
| Max Rapid Speed : | 8000 mm/min |
| Wood Feeding System - Autofeed : | Auto Feeding - Automatic Load and Unload (Fully Automatic) |
| Max Wood Width : | 4x4 Inch / 6x6 inch / Customize |
| Max Wood Length : | 3 Feet / 4 feet / Customize |

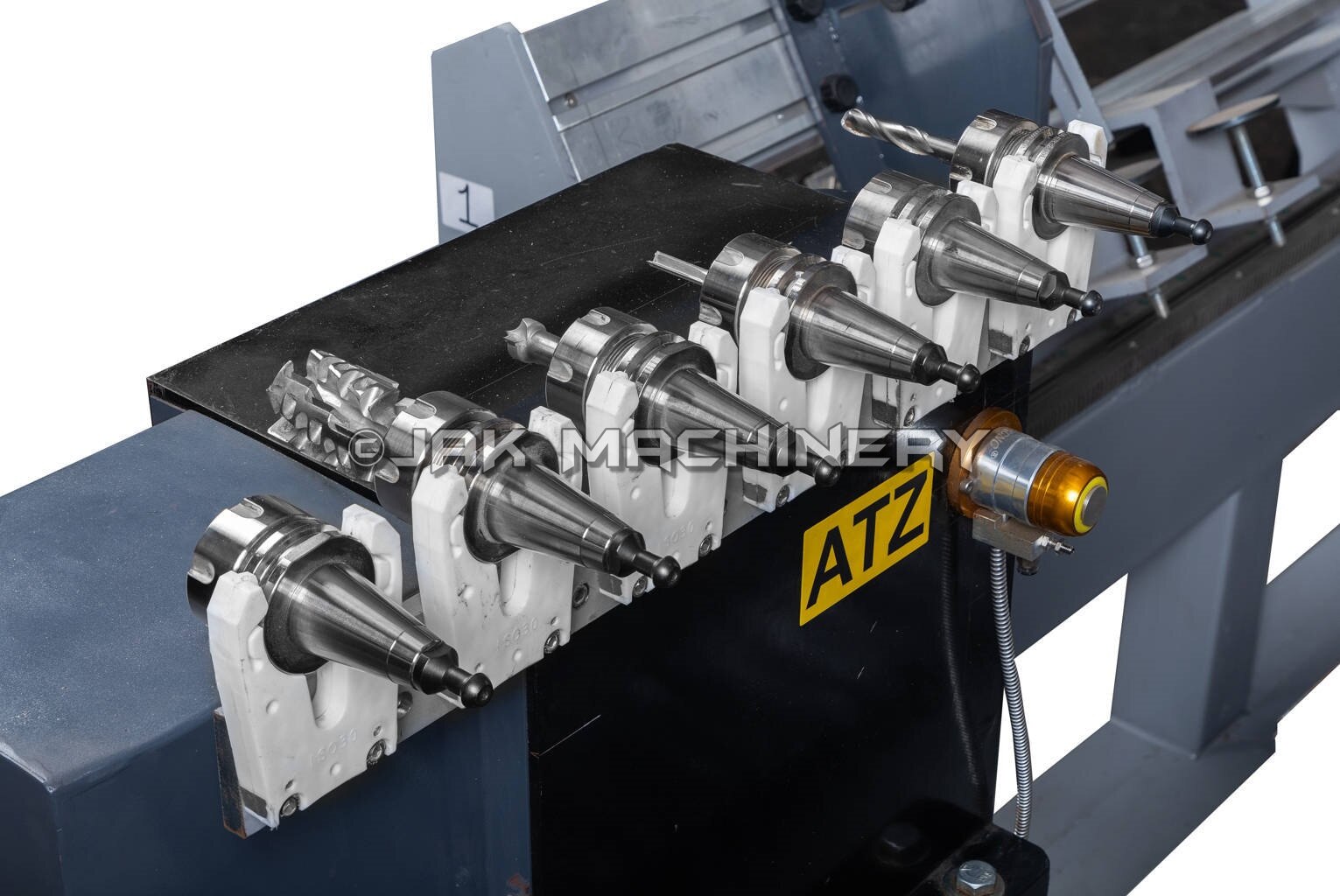

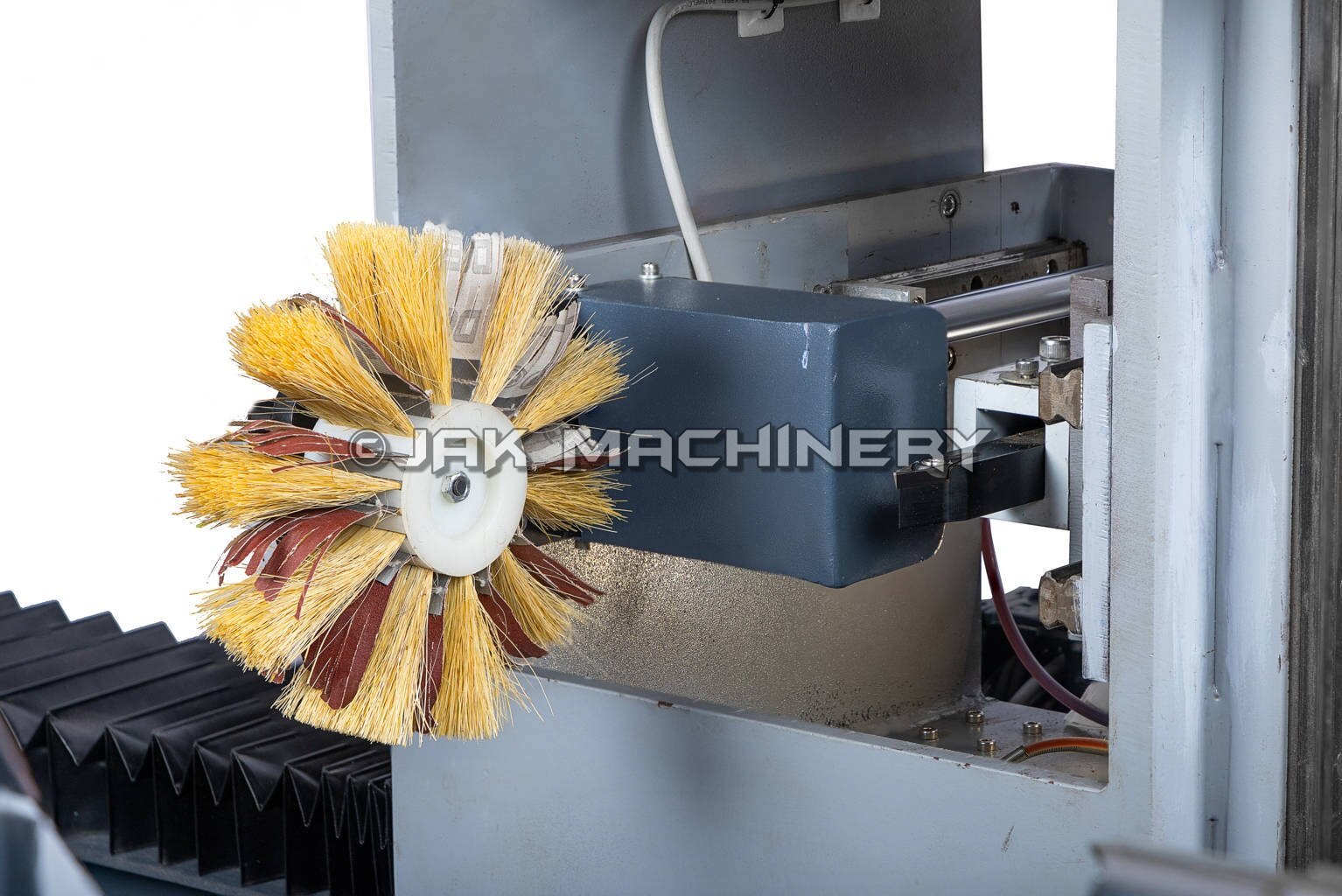

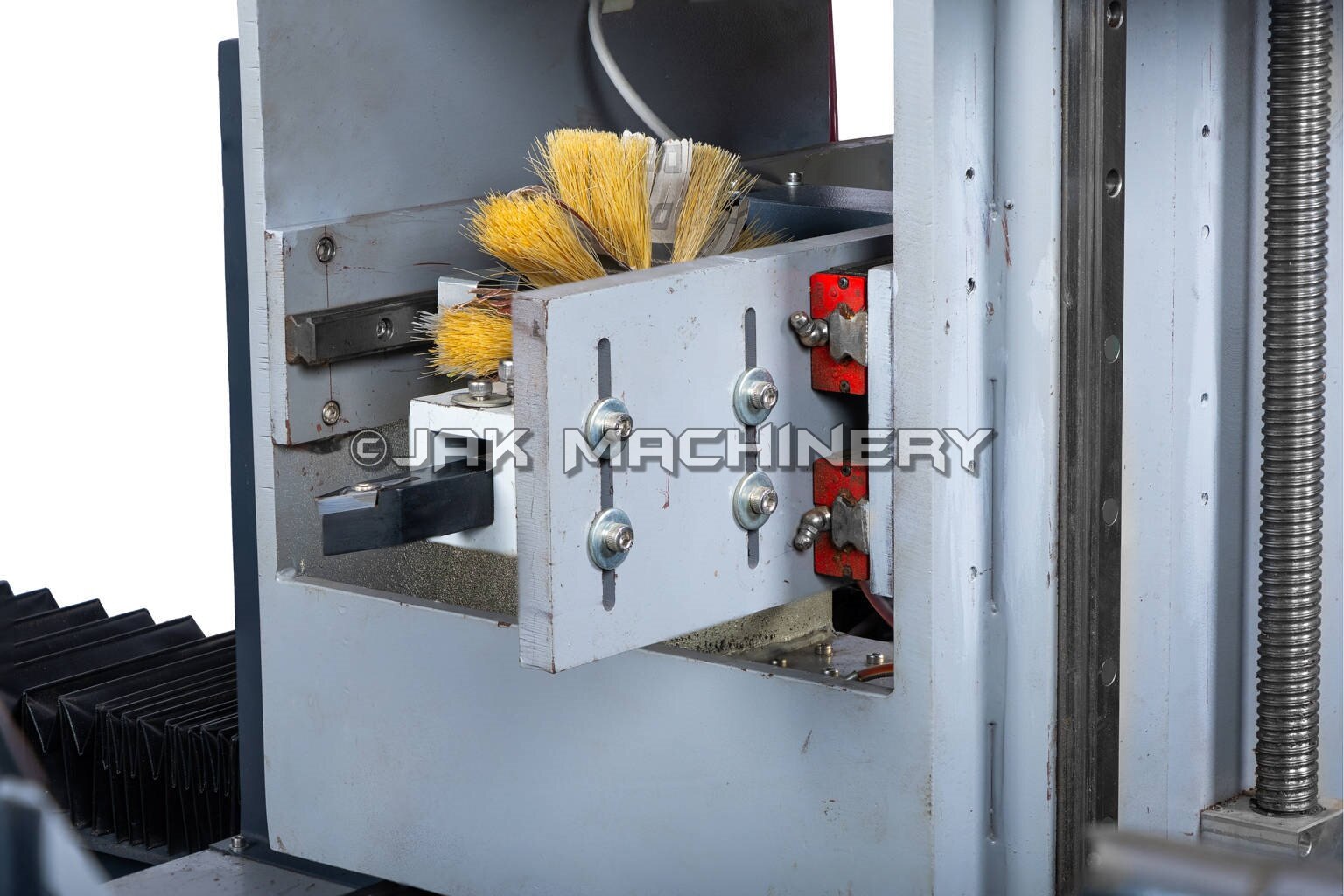

| Functions : | Turning - Wood Lath Works 4 axis ATC Carving - Router works Shaping - Planning / Milling Spiral cutter Finishing - Sanding on Turning |
