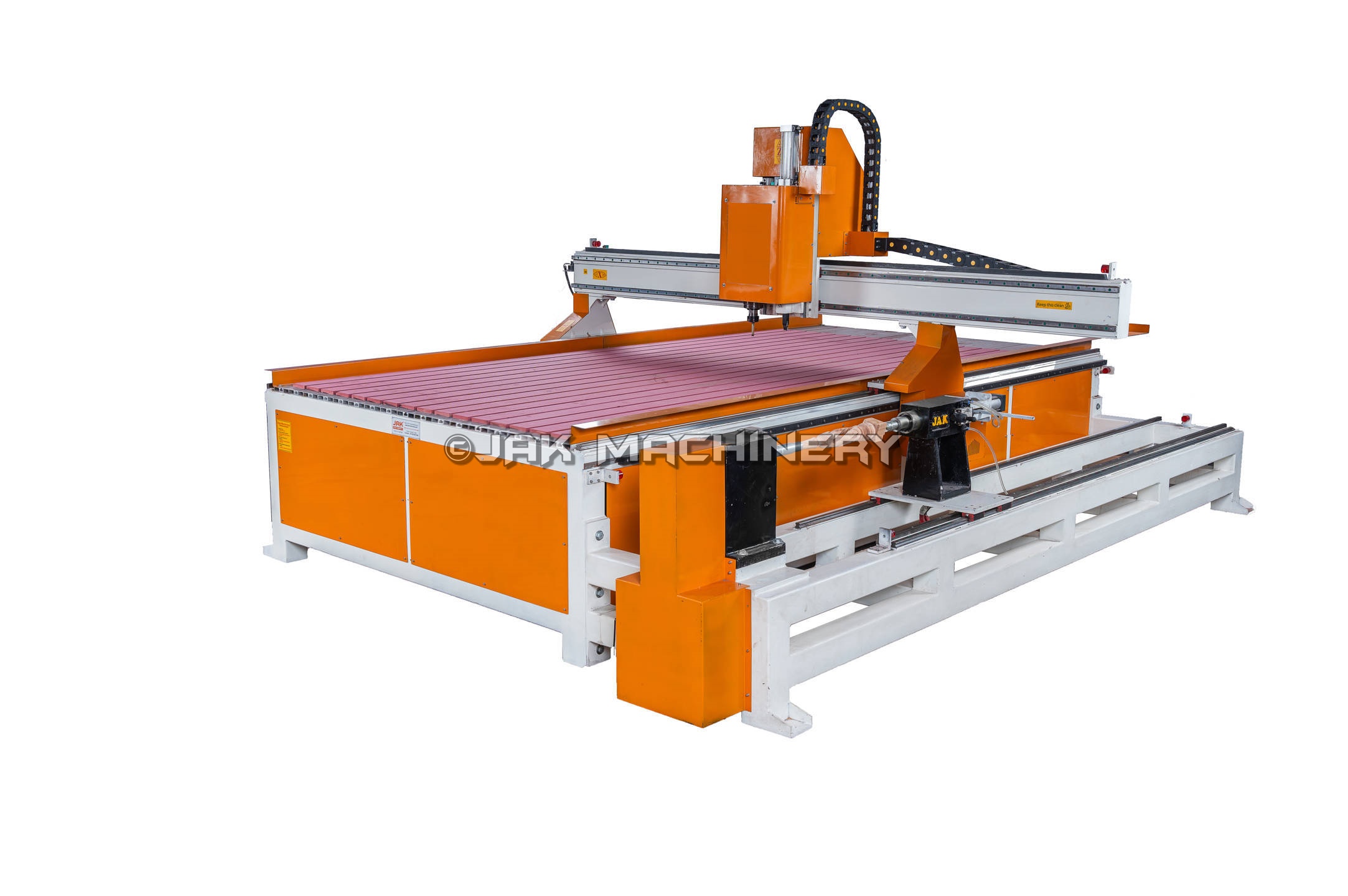

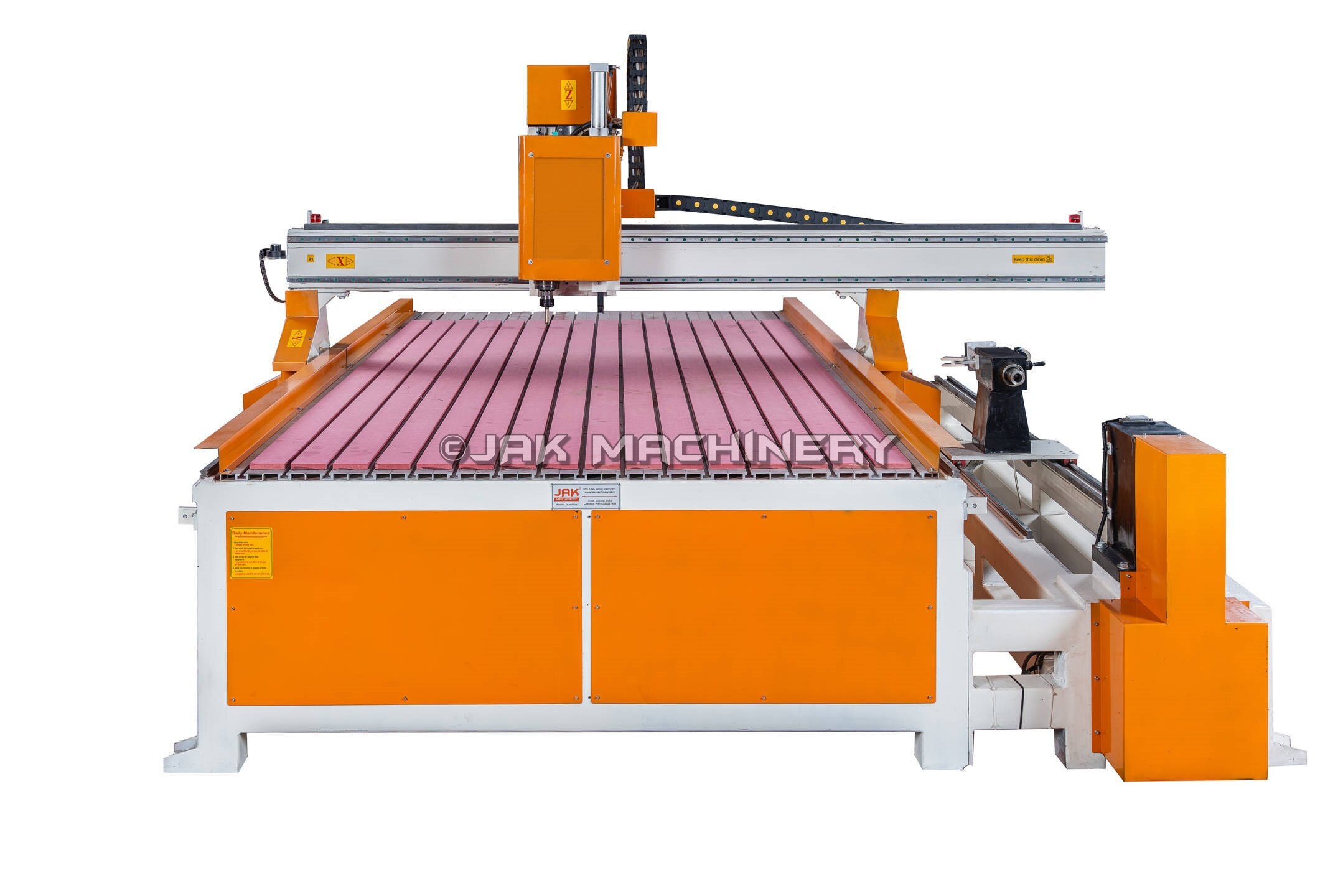

Advance Router (AR-MTC) is a whole new category launched by JAK Machinery. It is basically a combination of the two machines - Flat Bed Router and 4 Axis Turning Carving Lathe machine. This Machine work in 2 type of mode. 1. Router mode - Simple 3 Axis Router - Operation from the top side on sheet material 2. Lath Mode - Turning and 4 Axis Carving on Wooden pillar or wooden leg
| Remote Operating Support : | Machine can be operated remotely using any remote software like Anydesk / Ultraviewer. This is very nice feature that helps for training and trouble shooting. |
| Dome Light Indication : | Yellow Light indicates Main Power Supply is Applied. Green Light Indicates Machine Power is On. Red Light indicates Machine is at Emergency Stop mode. |
| Auto Lubrication : | Automatic lubrication systems consist of a central reservoir supplying lubricant through distribution lines to directly slider blocks. |
| Auto Stop : | Machine will stop Automatically if any Servo motor and spindle motor overload its rated capacity. This feature will help you to avoided savior mechanical damage because of collision. |
| Auto Origin : | When you start the machine, machine set the X and Z Origin Automatically. If this facility is not there then you must set the origin manually which can never be accurate. |
| Auto-function change : | Automatic function change customization enhances manufacturing flexibility by allowing machinery to automatically switch between different functions (Turning /Carving / Shaping / Sanding). This will enable user to use multiple operation without any interruption. |

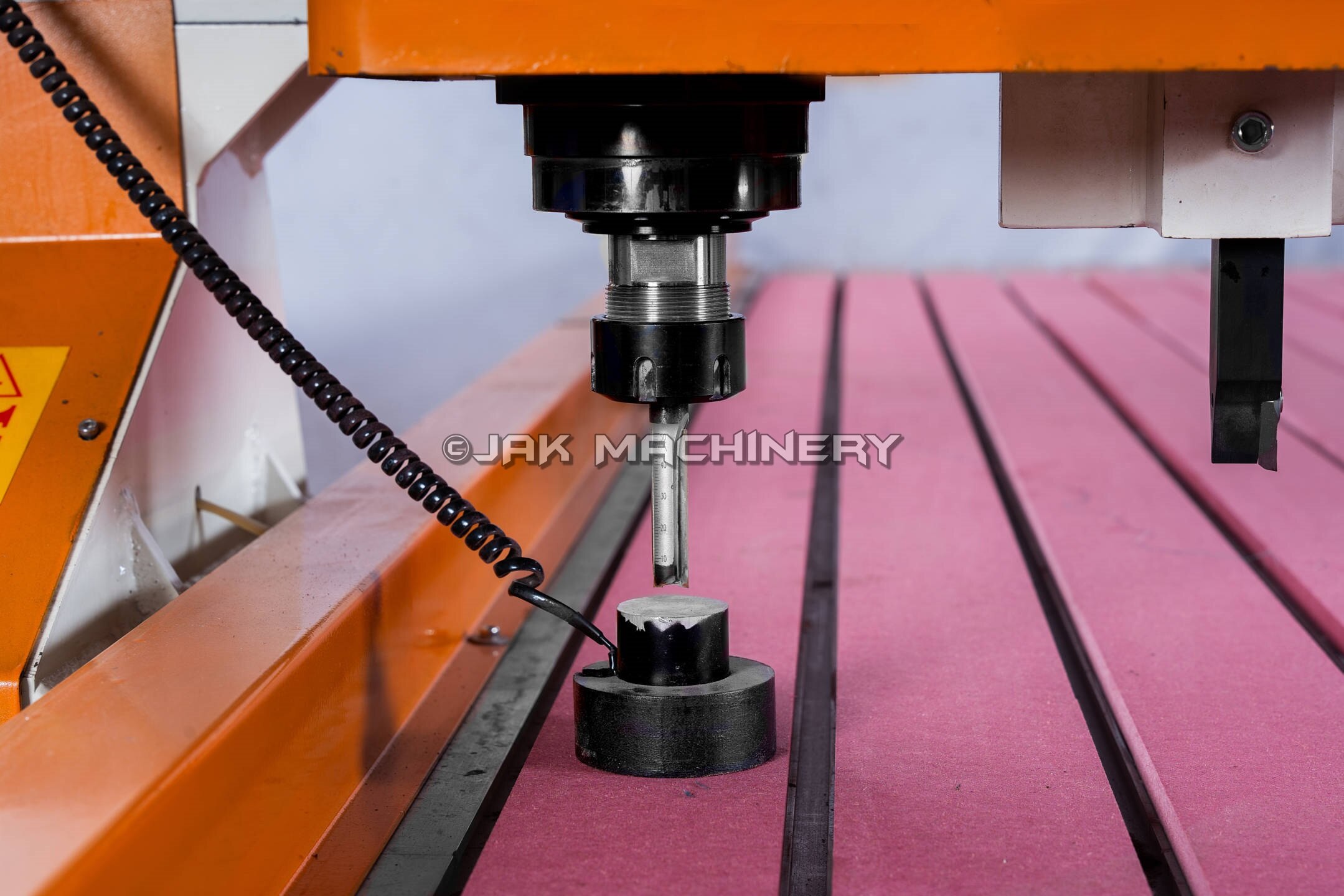

| Auto Tool zero : | Machine have Sensor for accurate measurement of both turning and carving tool lengths. Software store tool length and update the Y origin automatically. Without Auto tool zero you have to update origin on each wood size. |
| Power Consumption : | 8 KW - 3 Phase (Single Phase Also available) |
| Weight : | 1700 KG |
| Max Rapid Speed : | 14000 mm/min |
| Position Accuracy : | 0.05 mm (50 Micron) |
| Axis Motion Motor : | Servo Motor |
| Bed Type : | T-Slot Aluminium (Vacumme Bed Also Avaialble) |
| Spindle Specification : | 3.5 kW / 4.5 kW / 6 kW Air Cooled, 18000 rpm, ER32 |

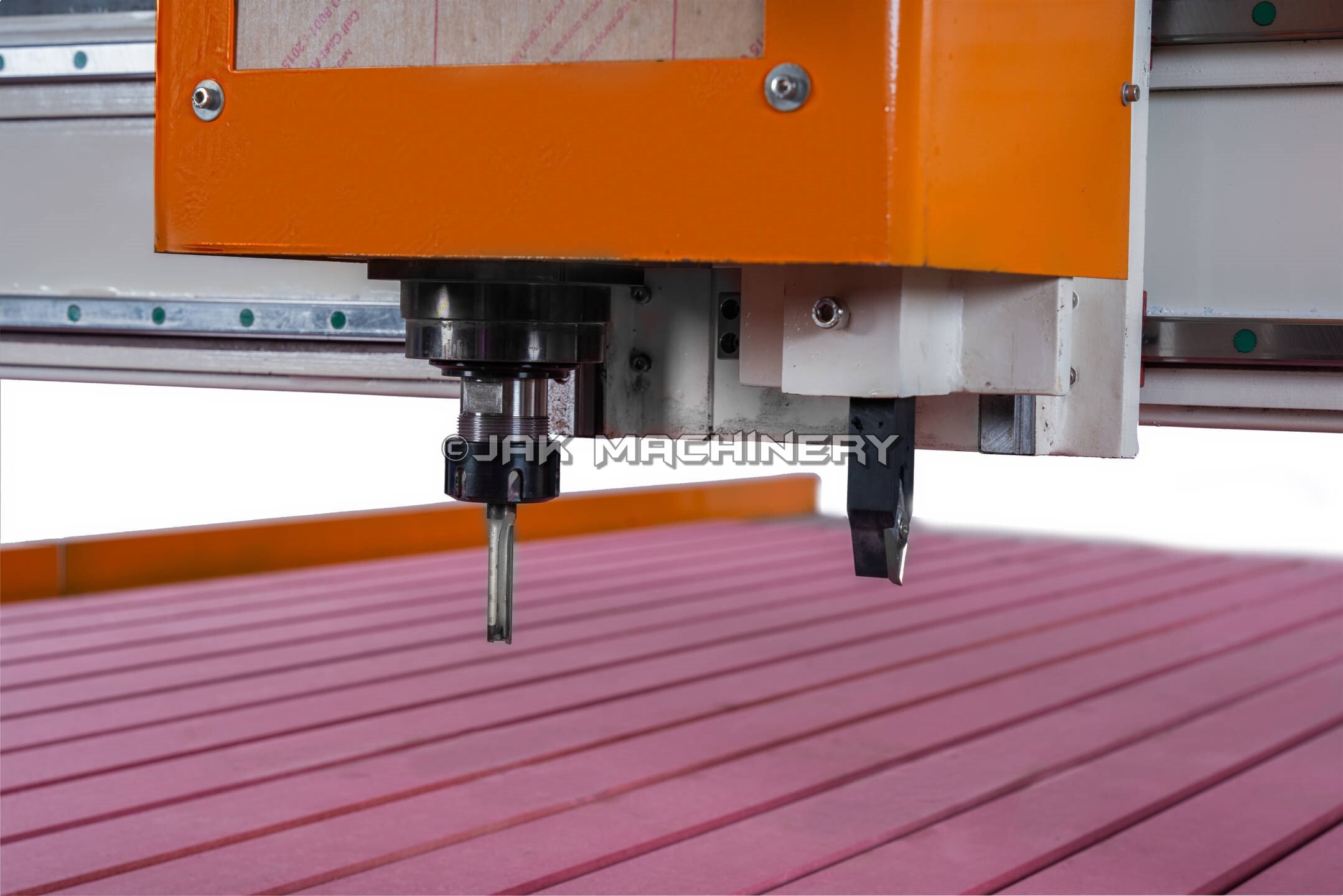

| Carving Spindle Type : | MTC (Manual Tool Change) |

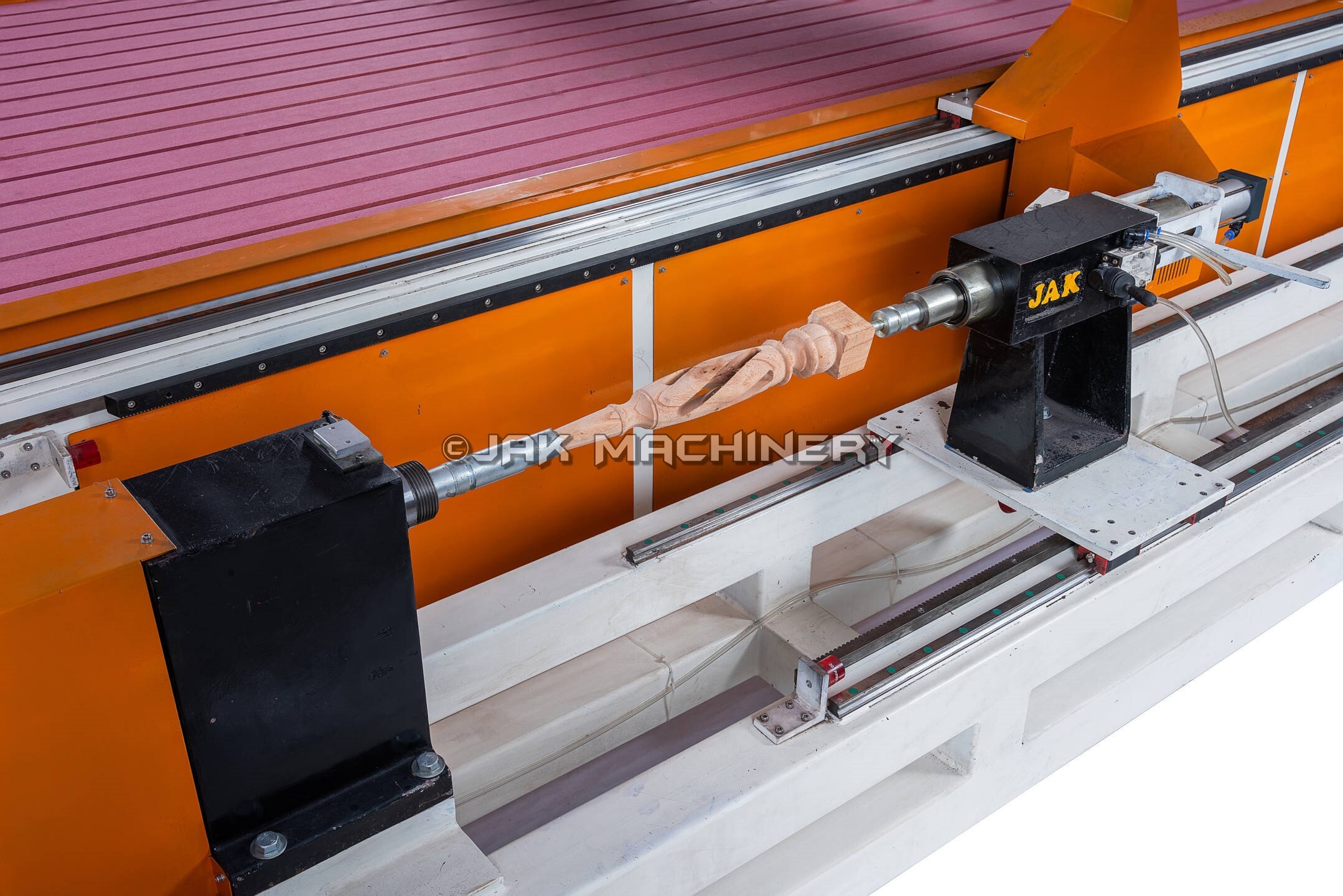

| Functions : | Router Mode : Flat Area Carving (Area : 4x8 Feet, Material Thickness : 100 mm) Lath Mode : Turning + 4 Axis Carving (Length : 6 Feet, Width : 6x6 inch) |
