CNC Wood Lathe Machine by JAK MACHINERY

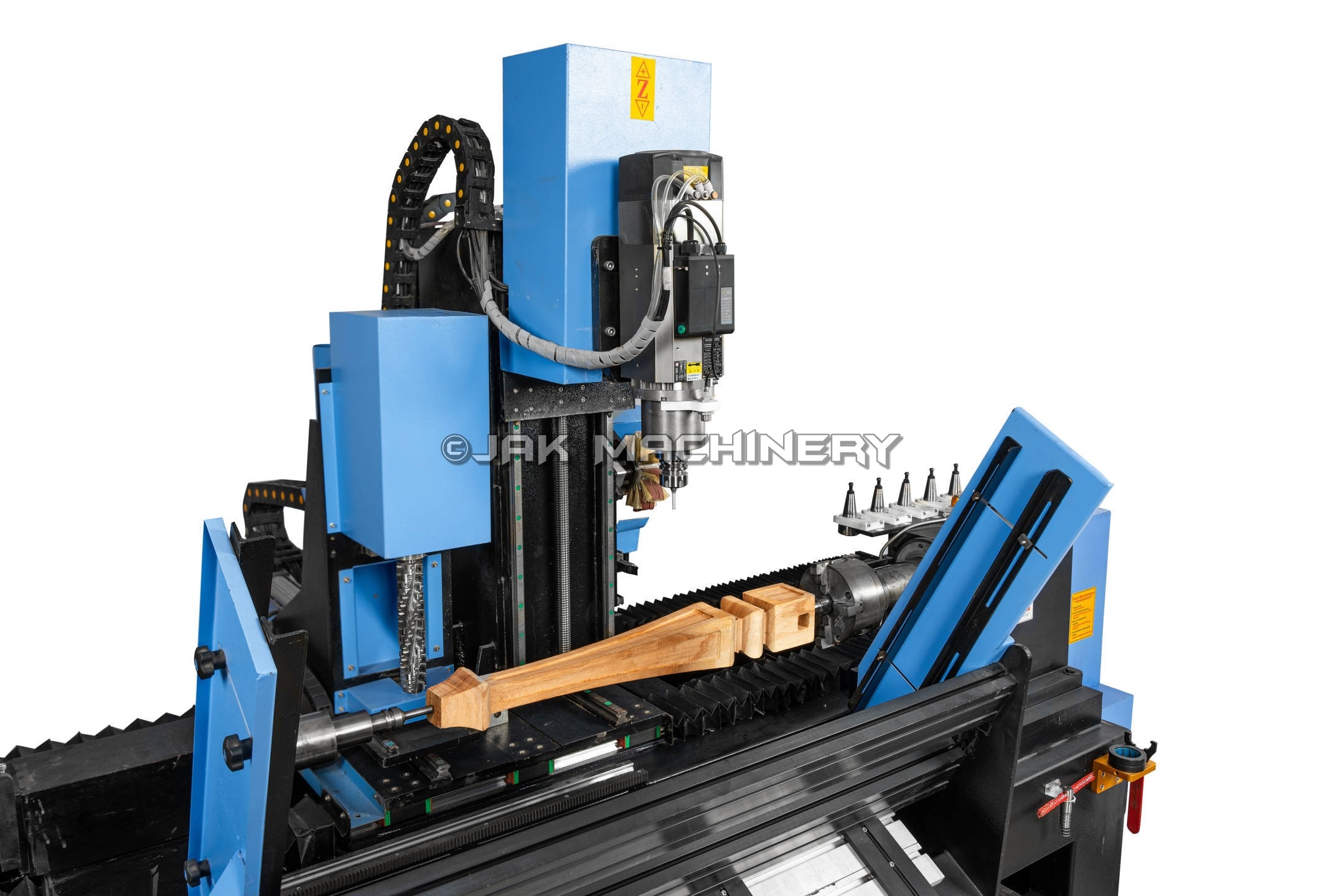

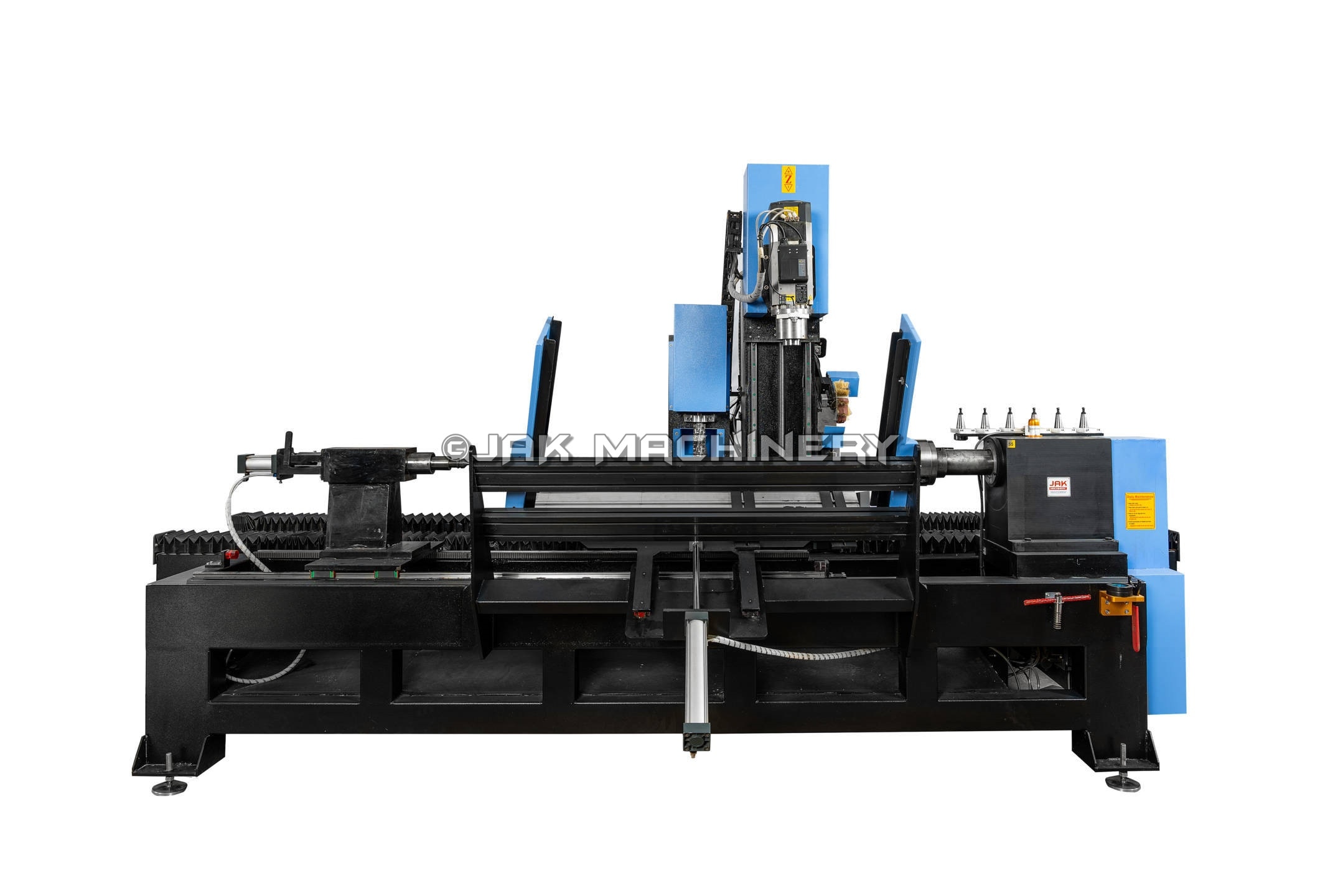

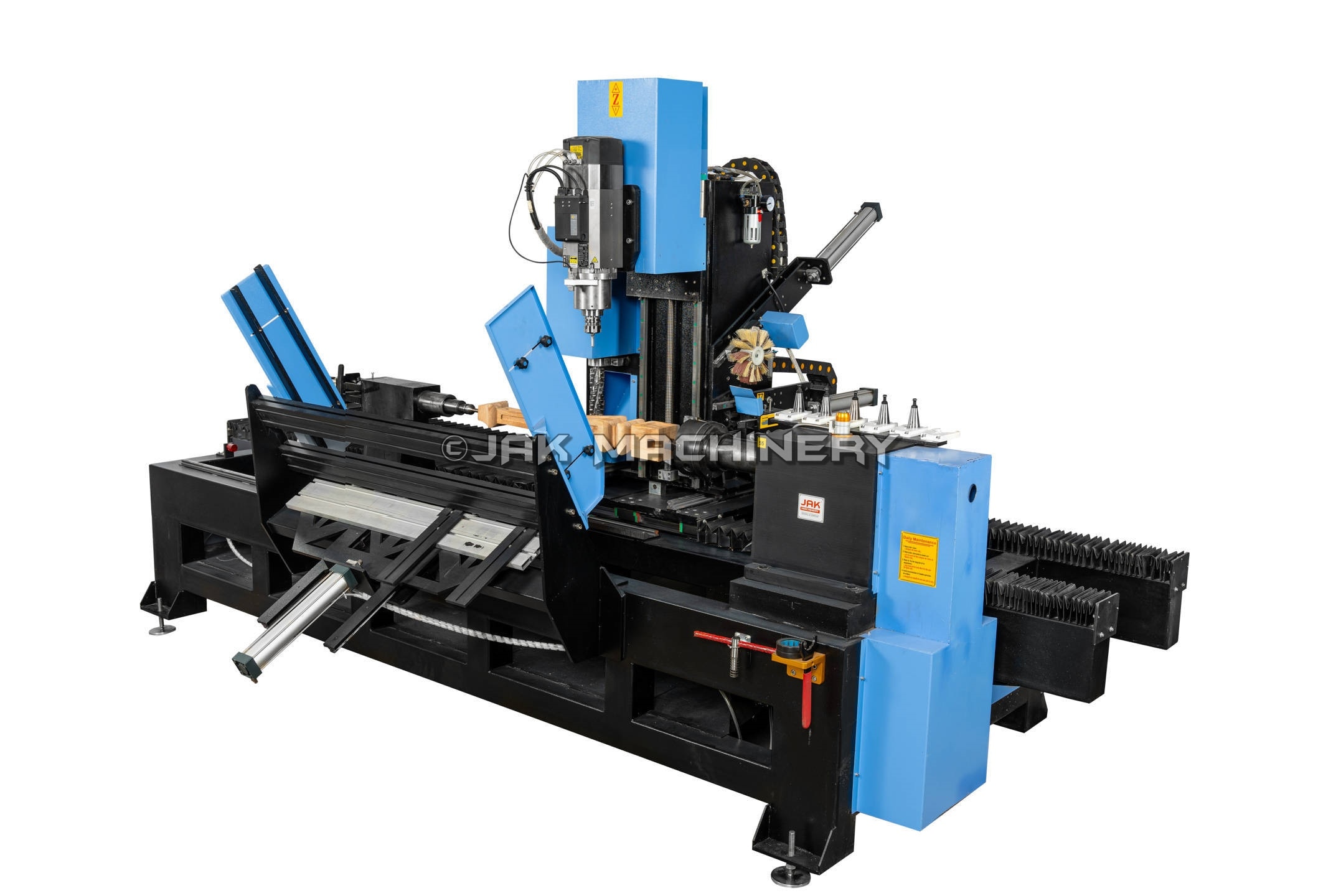

CNC 5 Axis ATC Wood Lathe Machine - 5 Axis (X-Y-Z-A-B) (Simultaneous) Total Axis

Check On JAK MACHINERY
Share with
JAK MACHINERY
Share this on :

Description

Product details

(Model : 5X-TCSF-AF-ATC) Multi-functional 5Axis Wood Lath Machine having capability of Turning , Carving , Shaping and Finishing (TCSF). Function is equipped with Automatic Tool Change with 6 Tool Station Feeding System is Fully Automatic - Feed that 5-10 wood planks all together , Loading and Unloading is automatically equip with High Speed Servo Motor, Maximum Wood size can be customized.

Other Specifications

Weight :1500 Kg
Power Consumption :13KW ( 3 Phase )
Max Rapid Speed :8000 mm/min
Position Accuracy :0.05 mm (50 Micron)
Axis Motion Motor :Servo Motor

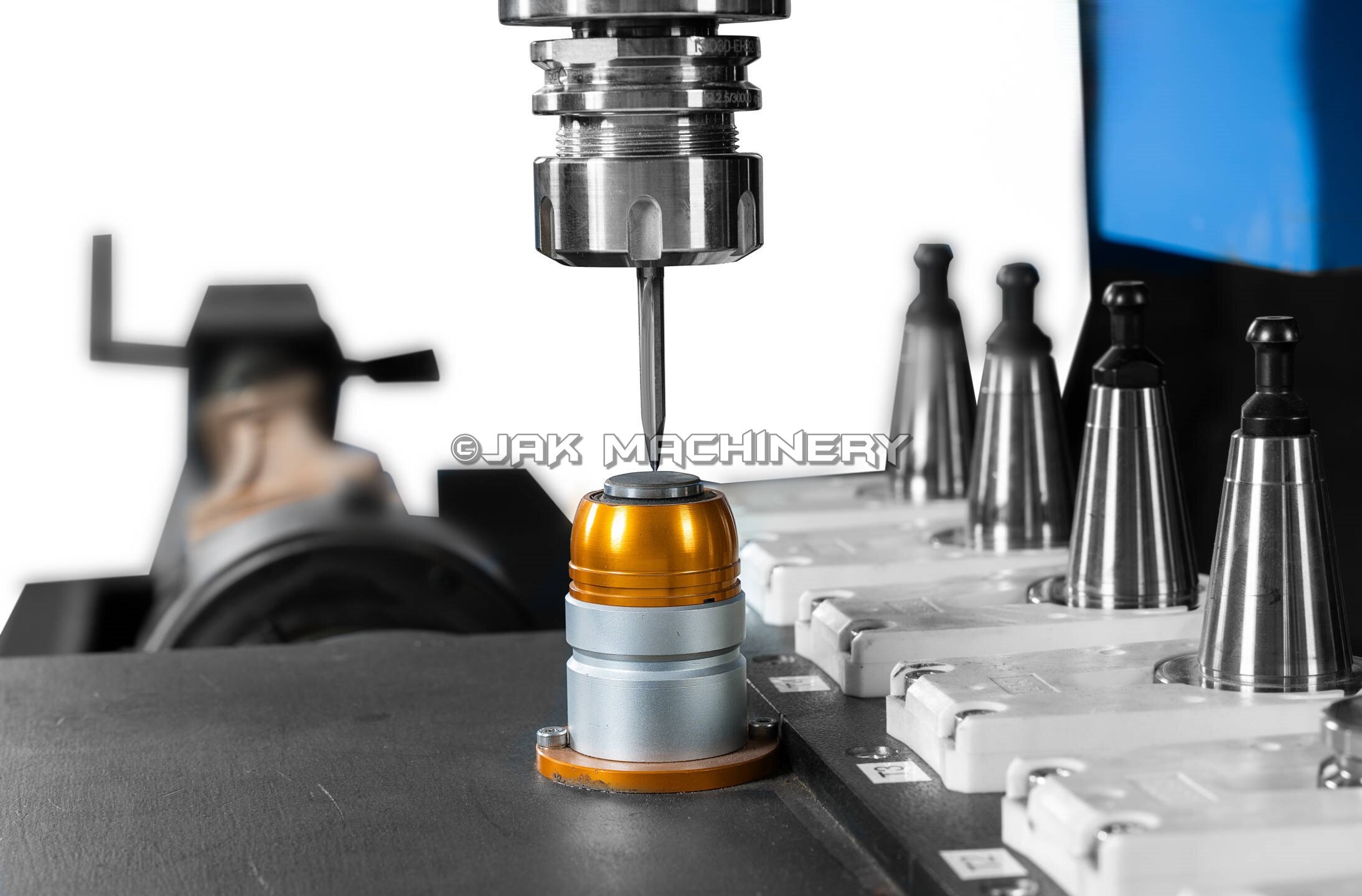

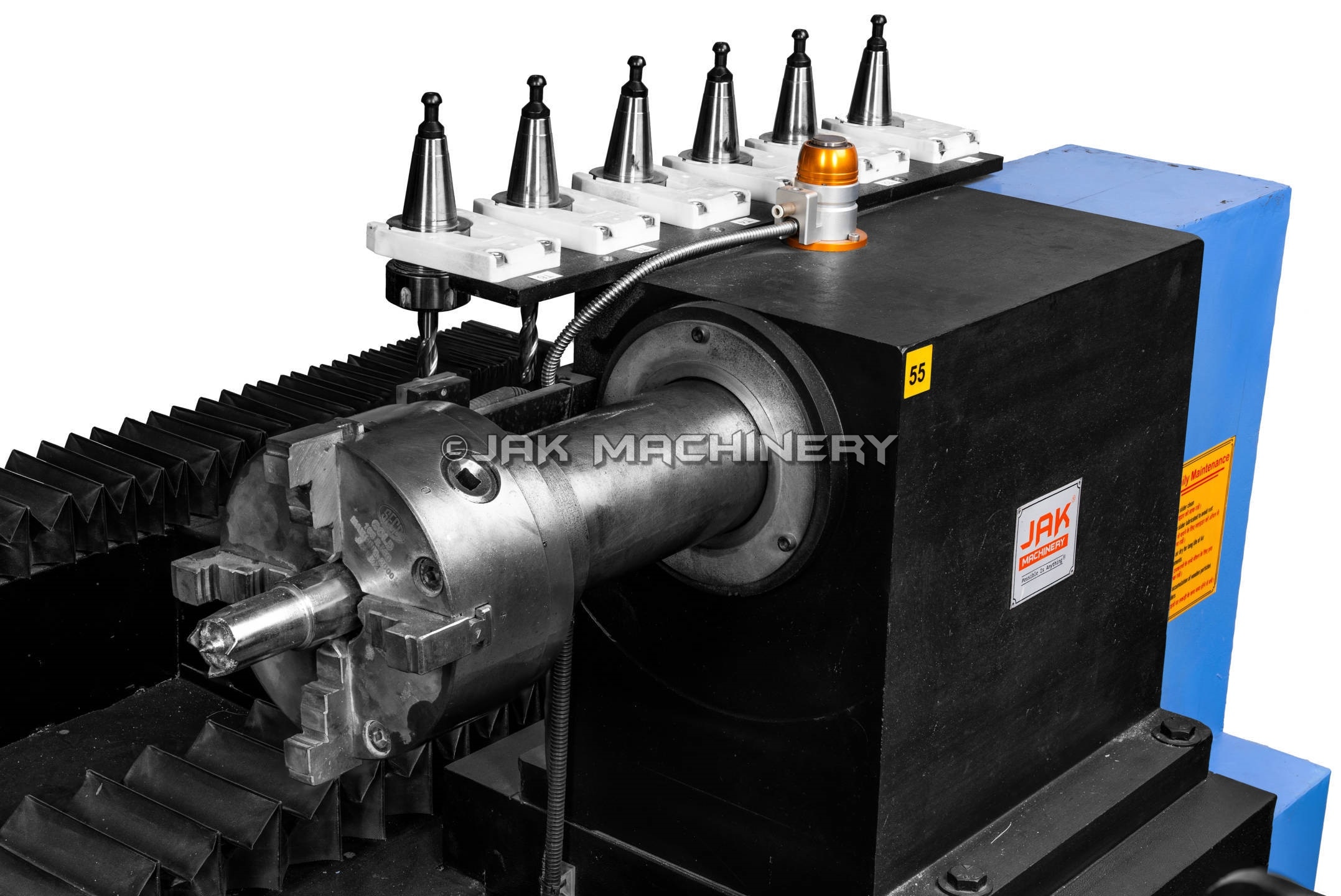

ATC Carving Tool Station :6 Tool Station (ISO30 - ER32 Collets)
Carving Spindle Type :ATC - Automatic Tool Change

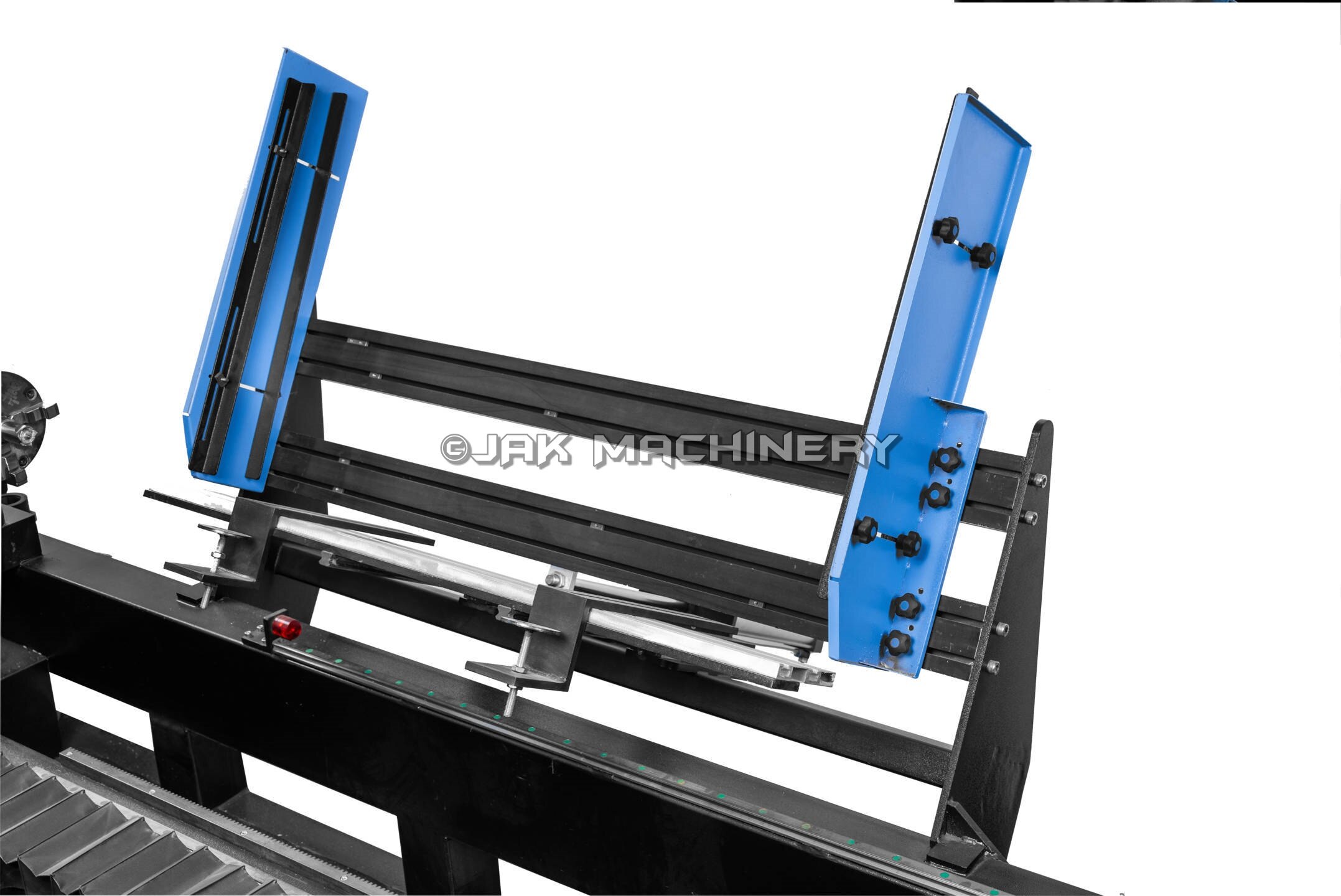

Wood Feeding System - Autofeed :Auto Feeding - Automatic Load and Unload (Fully Automatic)
Max Wood Length :3 Feet / 4 feet / Customize
Max Wood Width :4x4 Inch / 6x6 inch / Customize

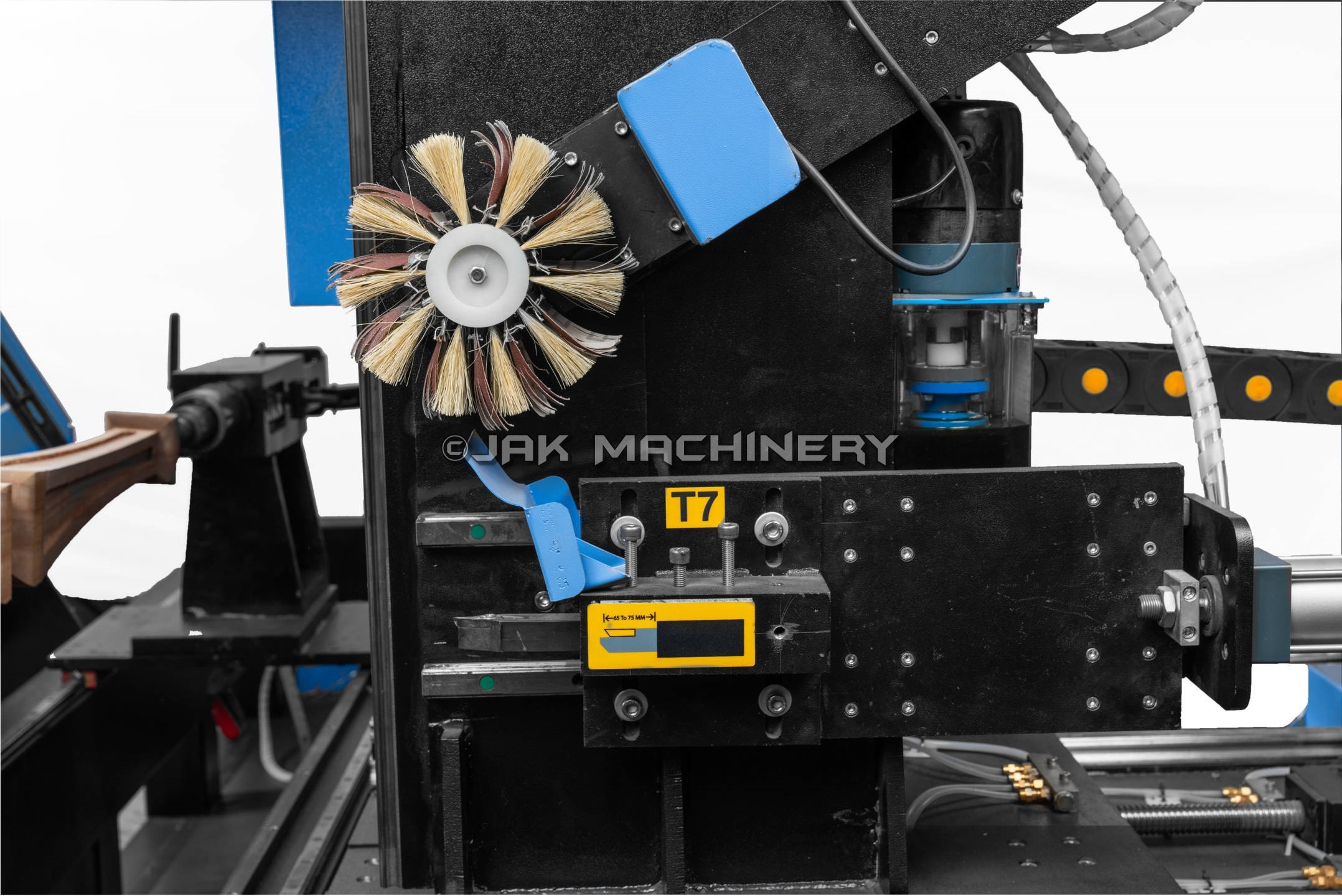

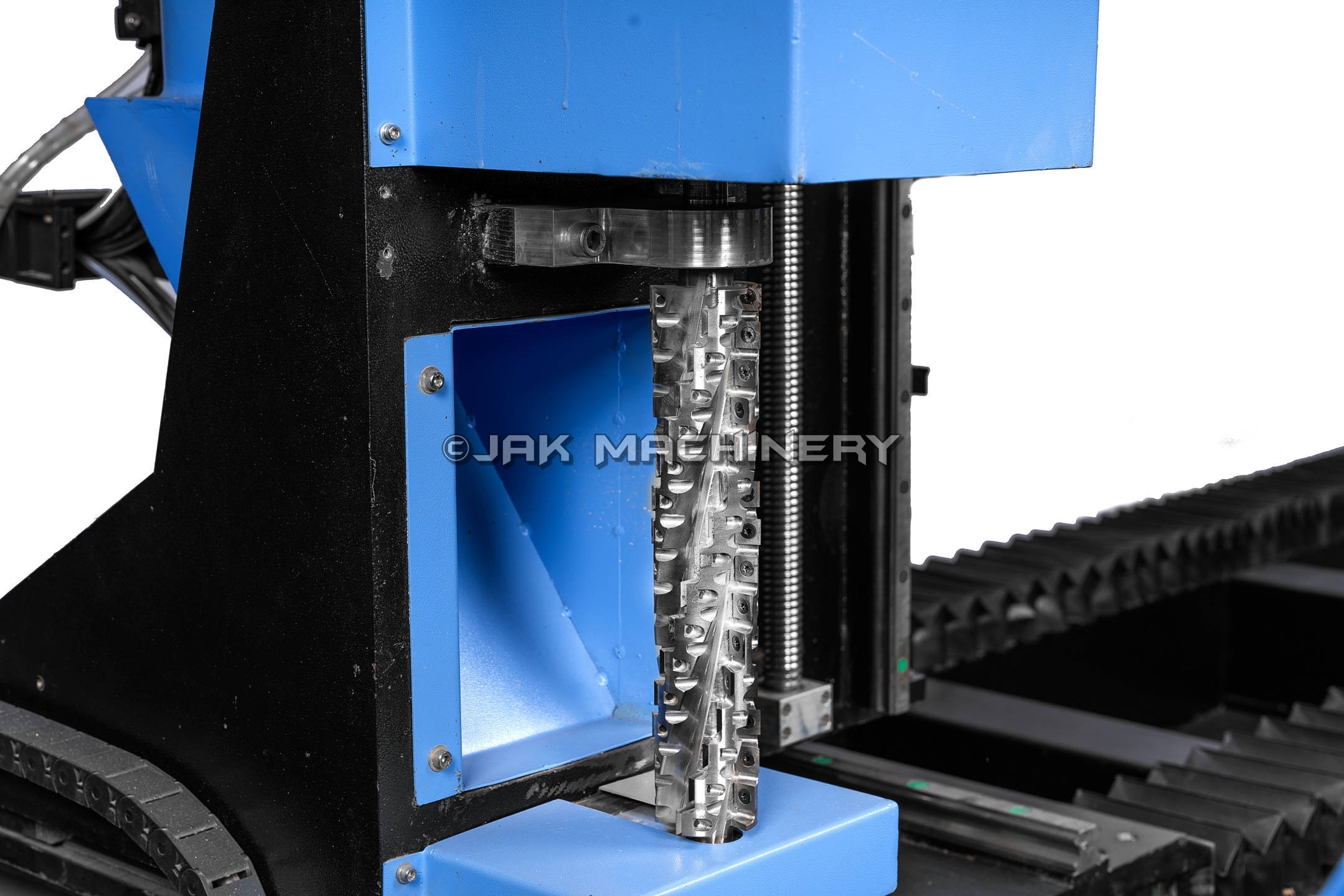

Functions :Turning - Wood Lath Works 5 axis ATC Carving - Router works Shaping - Planning / Milling Spiral cutter Finishing - Sanding on Turning
