Home Products MTC Router
COD not available
Cnc wooden router

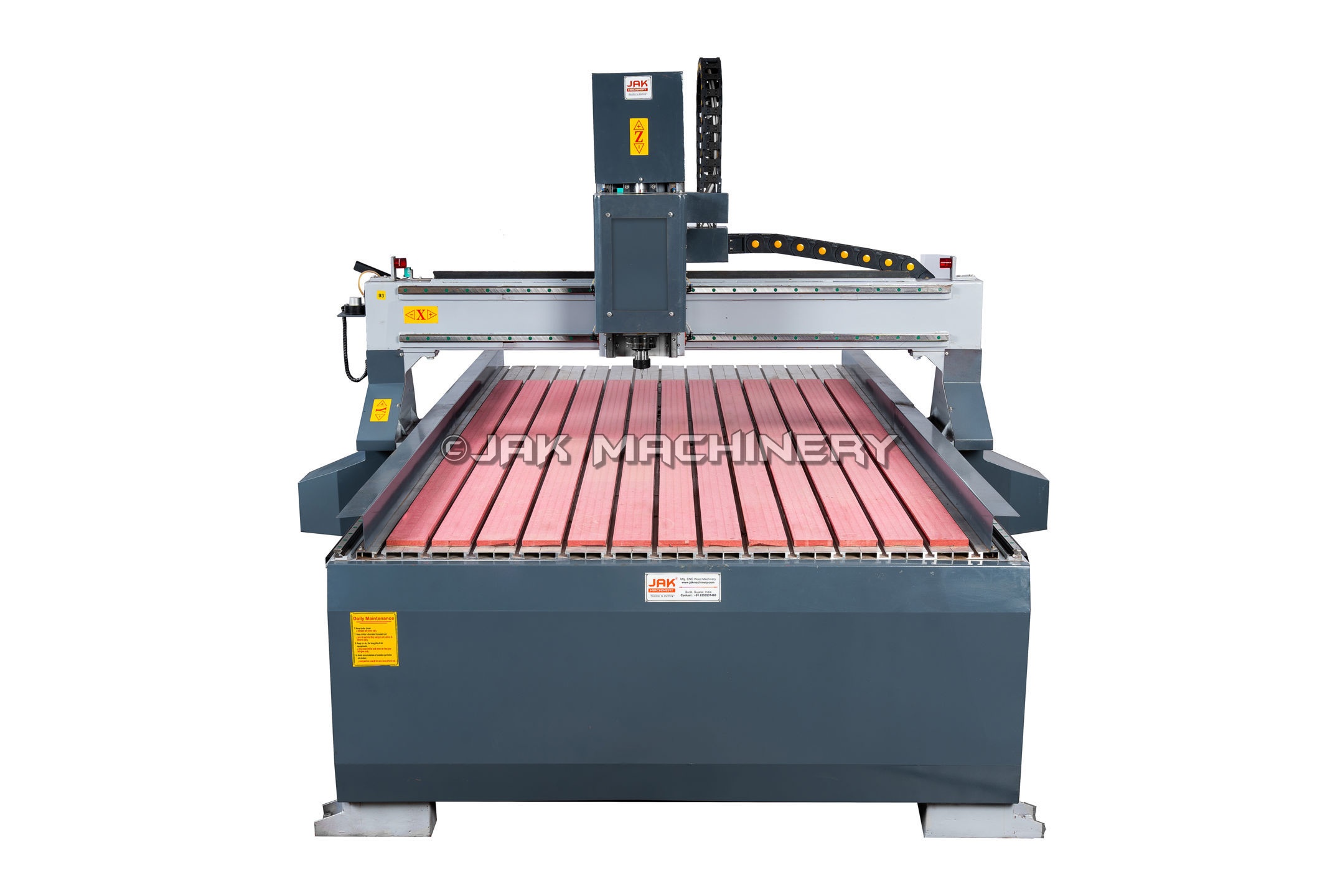

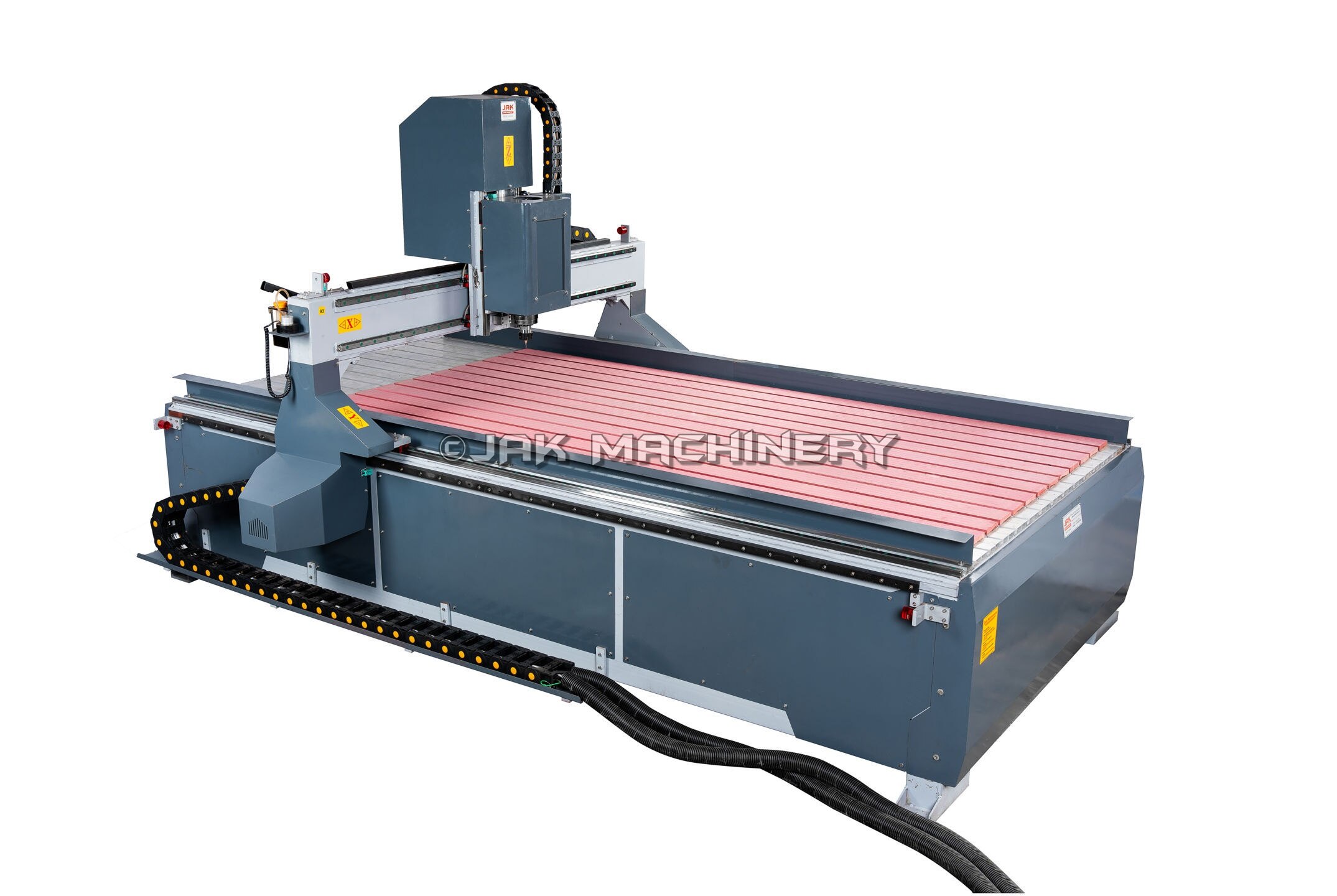

MTC Router - 3 Axis Axis

Check On JAK MACHINERY
Share with
JAK MACHINERY
Share this on :

Description

Product details

Machine Model – Simple Router – Manual tool Change (SR-MTC) This is most basic router model. Machine have 3 Axis for variouse operation like 2D cutting , 3D carving , drlilling etc. The head is called Spindle - which need to install tool manually Our CNC Router is used in furniture making, Modular Panels , signage making, Art and craft, architecture and interior decoration making, gift and toys making, engineering fixture , musical instruments making, students project and so many other industries.

Other Specifications

Remote Operating Support :Machine can be operated remotely using any remote software like Anydesk / Ultraviewer. This is very nice feature that helps for training and trouble shooting.
Dome Light Indication :Yellow Light indicates Main Power Supply is Applied. Green Light Indicates Machine Power is On. Red Light indicates Machine is at Emergency Stop mode.
Auto Stop :Machine will stop Automatically if any Servo motor and spindle motor overload its rated capacity. This feature will help you to avoided savior mechanical damage because of collision.
Auto Lubrication :Automatic lubrication systems consist of a central reservoir supplying lubricant through distribution lines to directly slider blocks.
Auto Origin :When you start the machine, machine set the X and Z Origin Automatically. If this facility is not there then you must set the origin manually which can never be accurate.

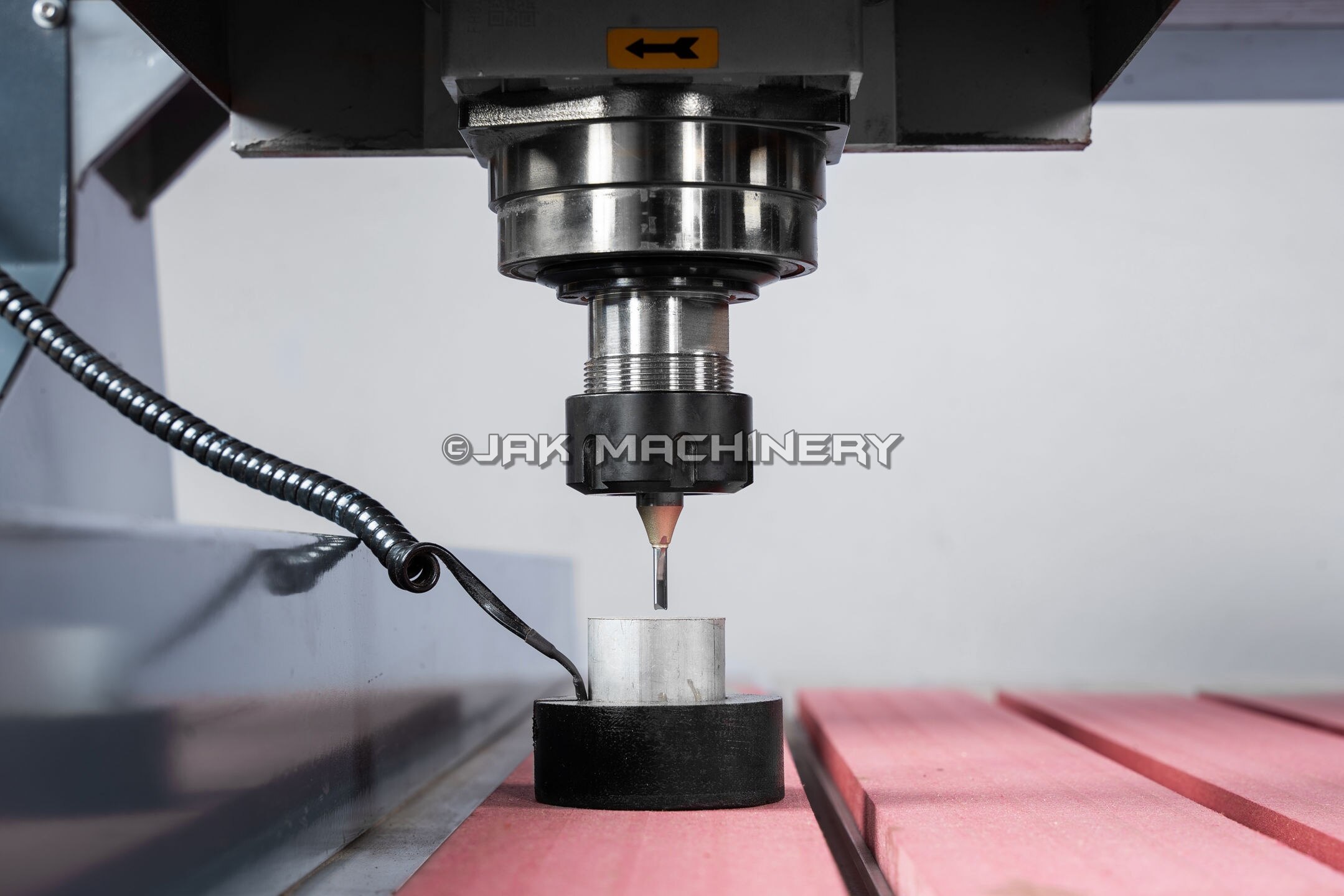

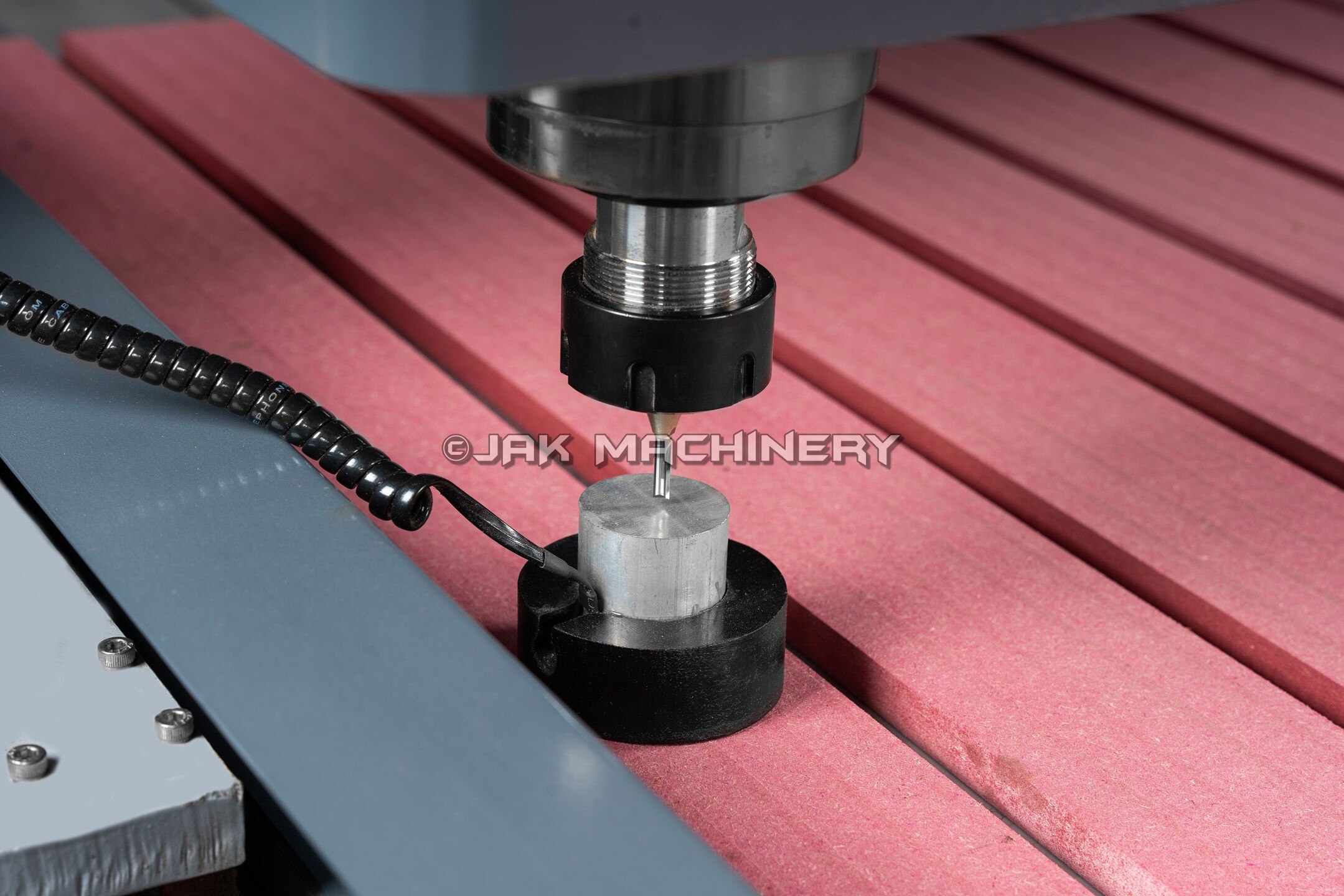

Auto Tool zero :Machine have Sensor for accurate measurement of both turning and carving tool lengths. Software store tool length and update the Y origin automatically. Without Auto tool zero you have to update origin on each wood size.
Power Consumption :6 kW - 3 Phase
Weight :800 KG
Position Accuracy :0.05 mm (50 Micron)
Max Rapid Speed :14000 mm/min
Axis Motion Motor :Servo Motor
Bed Type :T-Slot Aluminium (Vacumme Bed Also Avaialble)
Spindle Specification :3.5 kW / 4.5 kW / 6 kW Air Cooled, 18000 rpm, ER32
Carving Spindle Type :MTC (Manual Tool Change)
Max Material Thickness :3 inch (Customisable)
Bed Size :4x8 Feet (customisable)
Operations :D Profile Cutting and Pocketing, Drilling, 3D Carving, 2.5D Carving(V Carving)
